Gate and butterfly valves are both used to turn on and off the flow, but butterfly valves can also regulate flow via partial disc closure. Butterfly valves are part of the quarter-turn family of valves and can be shut off much faster than gate valves, which are multi-turn valves.
Valves play a crucial role in fluid control systems, with butterfly valves and gate valves being two of the most commonly used types in industrial and water supply applications. While both serve the purpose of regulating and isolating fluid flow, they differ significantly in design, operation, and application. Understanding these differences is essential for procurement managers and engineers to select the right valve for their needs. This article provides a detailed comparison between butterfly valves and gate valves from a manufacturer’s perspective.
Understanding Butterfly Valves

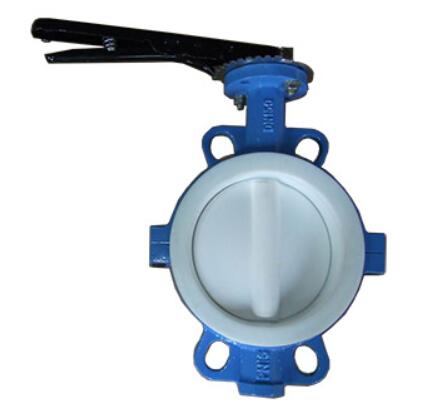

A butterfly valve is a quarter-turn valve that controls fluid flow using a rotating disc. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing minimal resistance. When closed, the disc turns perpendicular to block the flow completely.
Key Components:
- Valve Body: The main housing that connects to the pipeline.
- Disc (Butterfly): Rotates to control fluid flow.
- Stem: Links the actuator to the disc.
- Seat: Provides a sealing mechanism to prevent leaks.
- Actuator: Available in manual, pneumatic, or electric options for operation.
Advantages of Butterfly Valves:
- Compact and Lightweight: Compared to gate valves, butterfly valves have a smaller footprint, making installation easier in tight spaces.
- Quick Operation: A quarter-turn mechanism allows for rapid opening and closing.
- Cost-Effective: Lower material and maintenance costs.
- Minimal Pressure Drop: The streamlined design ensures efficient fluid flow with little resistance.
- Versatile Applications: Used in water treatment, industrial processes, and HVAC systems.
Understanding Gate Valves
A gate valve operates by lifting or lowering a gate (wedge) inside the valve body to allow or block fluid flow. Unlike butterfly valves, gate valves are designed for full shutoff or full flow applications, making them ideal for isolation purposes.
Key Components:
- Valve Body: Encloses the internal components.
- Gate (Wedge): Moves up or down to control fluid passage.
- Stem: Connects the actuator to the gate.
- Seat: Ensures a tight seal when the gate is fully closed.
- Actuator: Can be manual (handwheel) or automated.
Advantages of Gate Valves:
- Tight Sealing Capability: Provides better sealing performance, especially in high-pressure applications.
- Unrestricted Flow: When fully open, there is no obstruction in the pipeline, minimizing pressure loss.
- Durability: Suitable for long-term use in critical applications.
- High-Pressure Tolerance: Ideal for high-pressure and high-temperature environments.
Key Differences Between Butterfly Valves and Gate Valves
| Feature | Butterfly Valve | Gate Valve |
|---|---|---|
| Operation | Quarter-turn (90°) | Multi-turn (360°) |
| Flow Control | Suitable for throttling | Primarily for isolation |
| Space Requirement | Compact and lightweight | Bulky and heavy |
| Pressure Drop | Minimal | Negligible when fully open |
| Sealing Efficiency | Moderate | High |
| Maintenance | Easier and cost-effective | More complex and costly |
| Application | Water supply, HVAC, processing plants | Oil & gas, high-pressure pipelines |
Choosing the Right Valve for Your Application
When selecting between a butterfly valve and a gate valve, consider the following factors:
- Space Constraints: Butterfly valves are better suited for limited-space installations.
- Operational Speed: If quick operation is needed, butterfly valves are the superior choice.
- Sealing Requirements: Gate valves provide better sealing for high-pressure systems.
- Flow Control Needs: Butterfly valves are ideal for throttling, whereas gate valves are better for full shutoff.
- Cost and Maintenance: Butterfly valves are generally more cost-effective and easier to maintain.
Market Trends and Industry Insights
The global valve market is expected to grow significantly, with a projected CAGR of 5.6% from 2023 to 2030. The rising demand for efficient water management and industrial automation is driving the adoption of advanced valve solutions. With increasing urbanization, the need for reliable water supply systems is fueling the demand for both butterfly and gate valves across various industries.
Conclusion
Both butterfly valves and gate valves have distinct advantages and are used in different applications based on specific requirements. Butterfly valves offer cost-effectiveness, ease of operation, and versatility, making them ideal for water supply and HVAC systems. Gate valves, on the other hand, provide superior sealing and are better suited for high-pressure applications.
As a leading valve manufacturer, we offer high-quality butterfly and gate valves designed to meet industry standards. Contact us today to explore our product range and find the best solution for your application.
