Features:

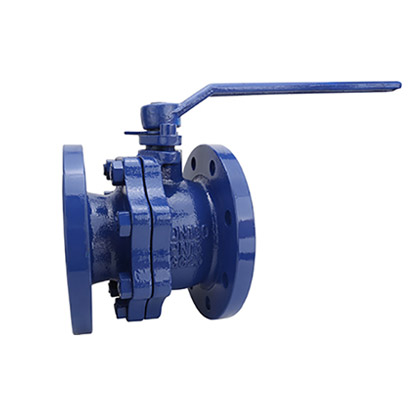

Leflow’s DIN Cast Iron Ball valve has 1pc 2pc and 3pc model, Full bore and Reducing bore.PN16 rating.DN15-DN100 conforms to EN558-14,DN125-DN250 conforms to EN558-15.
GG25 body ball valves can be used in many industries like water distribution networks, food and pharmaceutical plants, water treatment, power plants and so on.
1.The stainless steel ball & stem and sealing mechanism ensures the valve for long life usage.
2.It is advised to be used either at fully open or fully closed position.
3.The ball valves open/close position can be easily observed from the position of handlever easily.
4.PTFE sealing provides long service life with zero leakage rates.
5.The valves are designed for bidirectional usage.
6.Through its full bore design, pressure loss is almost at zero point.
7.By adding an ISO top flange, the valve operation can be maintained by gearbox, pneumatical or electrical actuator.
8.The valves are Anti-static and blowout-proof designed.
9.Extension Stem is also optional.
